FPGAs With NIST CAVP Certification

Lattice is sampling its MachXO3D FPGAs for secure system control which have received the National Institute of Standards and Technology’s (NIST) Cryptographic Algorithm Validation Program (CAVP) certification.

CAVP validates that critical MachXO3D cryptographic algorithms are compliant with Federal Information Processing Standards (FIPS), the U.S. federal government’s standard for cryptographic software.

By complying with both the CAVP and NIST’s Platform Firmware Resilience specifications, the MachXO3D FPGA’s security mechanisms can protect, detect and recover the device and other system components from unauthorized firmware access throughout its entire operating life: from the device’s initial integration, through system shipment, installation and its entire operational life.

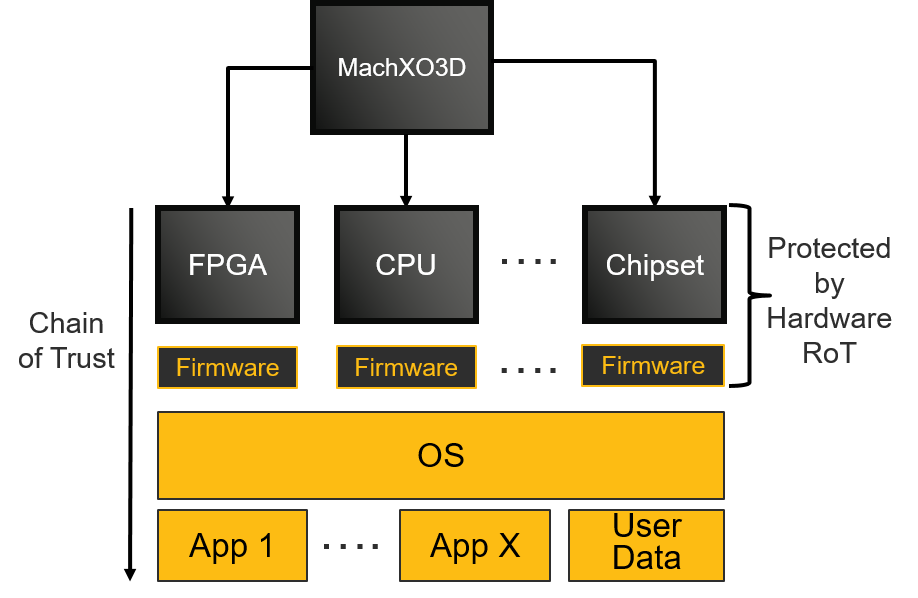

MachXO3D is the only FPGA on the market that combines the design flexibility of programmable logic with a secure dual-boot configuration block to provide easy application design, establish a hardware-based Root of Trust to ensure system components only boot from authorized firmware, and enable secure delivery of firmware updates in the field.

Key features of the MachXO3D include:

·        Up to 9K look-up tables for implementing logic that instantly configures at power up from on device flash memory

·        On-device regulator for single 2.5/3.3-volt power supply operation

·        Support for up to 2700 Kbits of user Flash memory and up to 430 Kbits sysMEM™ embedded block RAM to provide more flexible design options

·        Up to 383 I/Os, configurable to support LVCMOS 3.3 to 1.0, and designed to integrate into a wide variety of system environments with features such as hot-socketing, default pull-down, input hysteresis, and programmable slew rate

·        Embedded security block that provides pre-verified hardware support for cryptographic functions such as ECDSA256, ECIES, AES, SHA, HMAC, TRNG, Unique Secure ID and Public/Private Key Generation

·        Embedded secure configuration engine to ensure only FPGA configurations from a trusted source can be installed

·        Dual on-device configuration memories to enable fail-safe reprogramming of component firmware in the event of compromise
