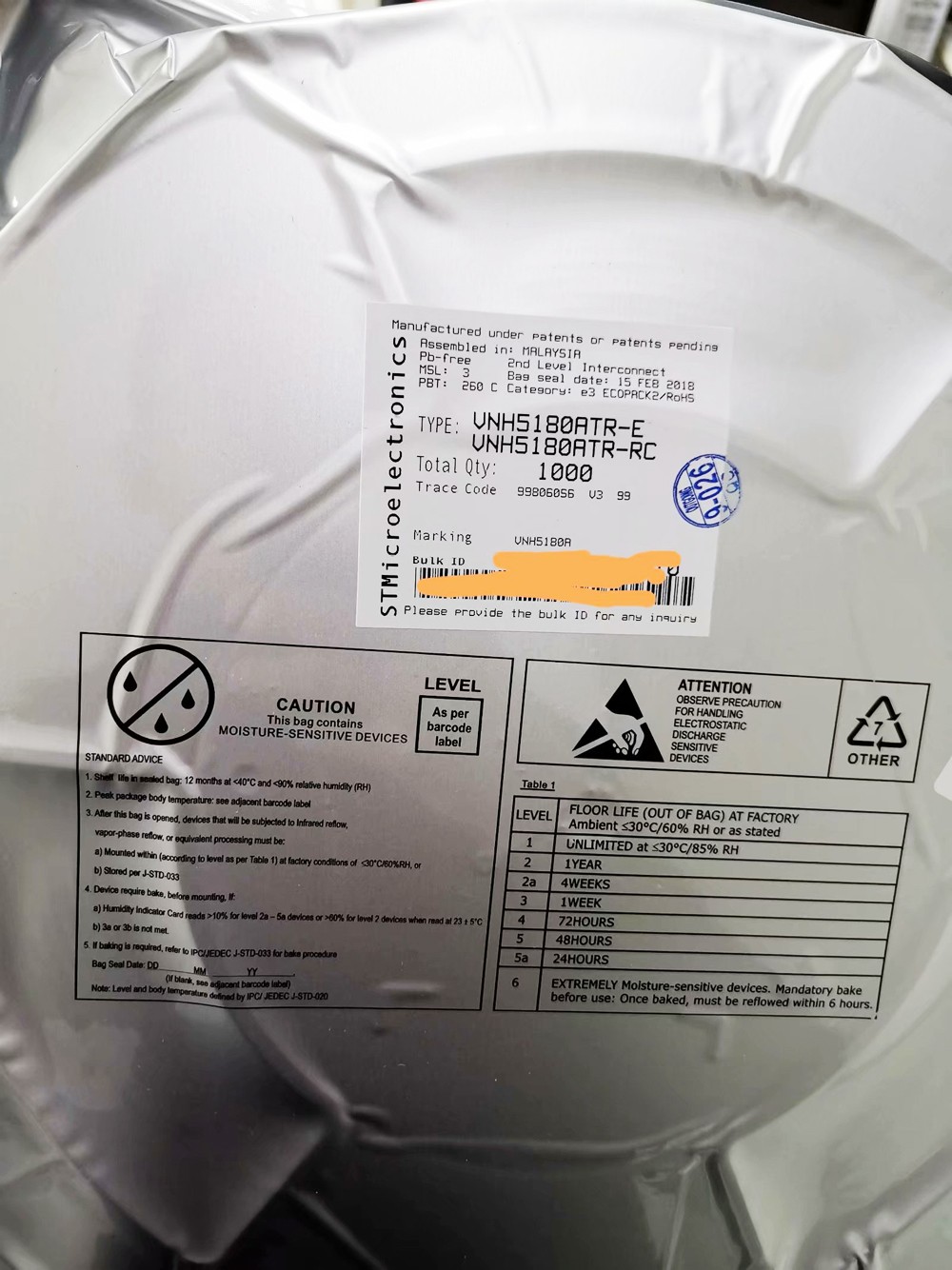

VNH5180ATR-E

VNH5180ATR STMicroelectronics H-Bridge Motor Driver Automotive 36-Pin PowerSSO EP T/R

ManufacturerSTMicroelectronics
SeriesECOPACK®, VIPower™
PackagingTape & Reel (TR)
Part StatusActive
Motor Type - Stepper-
Motor Type - AC, DCBrushed DC
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (2)
InterfaceParallel, PWM
TechnologyPower MOSFET
Step Resolution-
ApplicationsAutomotive
Current - Output8A
Voltage - Supply5.5V ~ 18V
Voltage - Load5.5V ~ 18V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case36-BFSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device PackagePowerSSO-36
