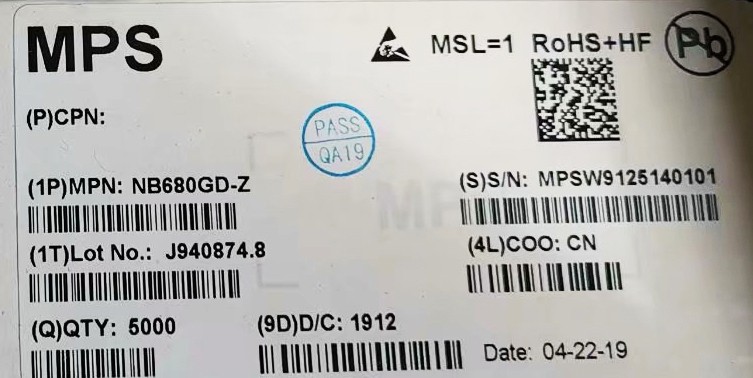

NB680GD-Z

NB680GD-Z Monolithic Power Systems Conv DC-DC Single Step Down 4.8V to 24V 12-Pin QFN T/R

Description	Value
Type	Step Down
Switching Regulator	Yes
Switching Frequency	700 kHz
Supplier Package	QFN
Screening Level	Extended Industrial
Product Dimensions	2 x 3 x 0.95(Max)
Pin Count	12
Output Voltage	3.3 V
Output Type	Fixed
Output Current	8 A
Operating Temperature	-40 to 125 °C
Operating Supply Voltage	4.8 to 24 V
Number of Outputs	1
MSL Level	1
Mounting	Surface Mount
Minimum Input Voltage	4.8 V
Maximum Input Voltage	24 V
Max Processing Temp	260
Load Regulation	5 %
Lead Finish	Matte Tin
