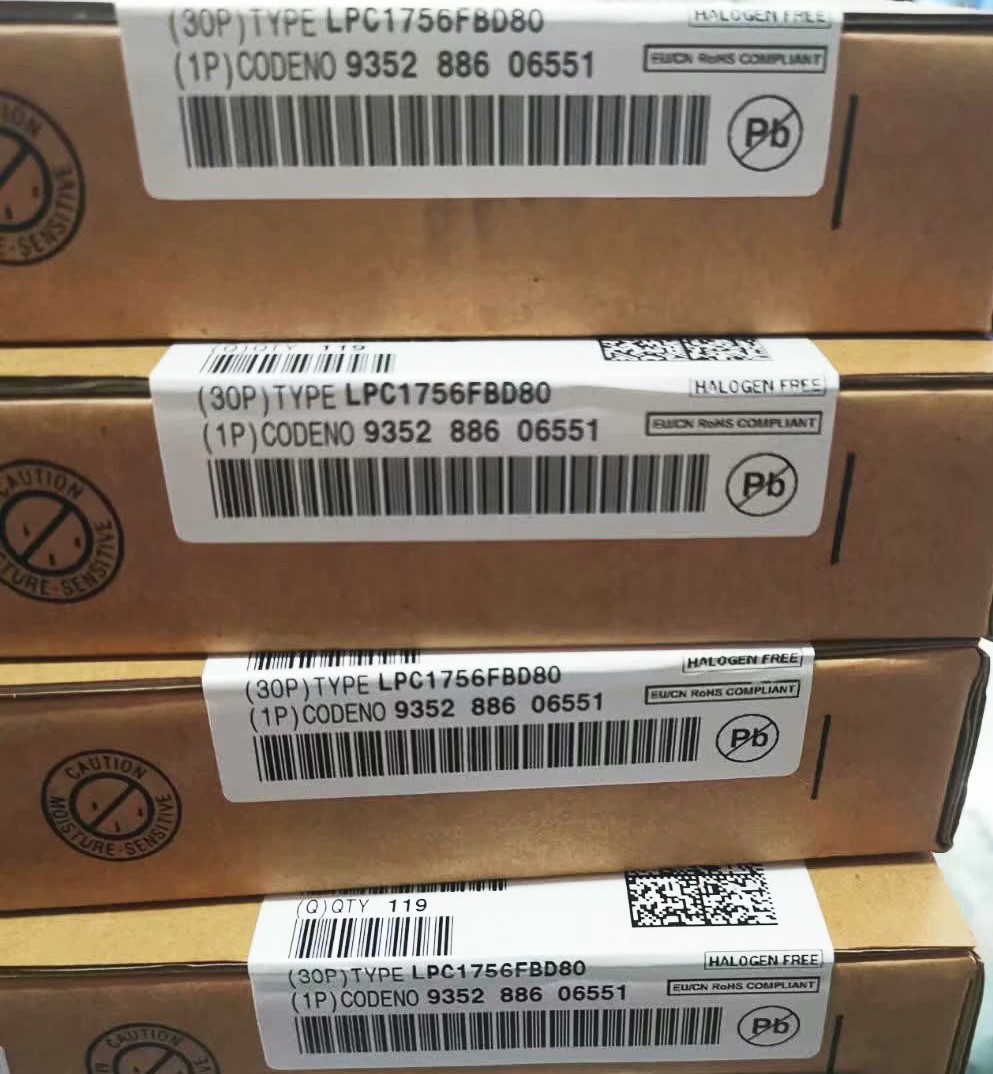

LPC1756FBD80

LPC1756FBD80 NXP Semiconductors MCU 32-bit ARM Cortex M3 RISC 256KB Flash 2.5V/3.3V 80-Pin LQFP Tray

ManufacturerNXP Semiconductors
SeriesLPC17xx
PackagingTray
Part StatusActive
Core ProcessorARM® Cortex®-M3
Core Size32-Bit
Speed100MHz
ConnectivityCANbus, I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB OTG
PeripheralsBrown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT
Number of I/O52
Program Memory Size256KB (256K x 8)
Program Memory TypeFLASH
EEPROM Size-
RAM Size32K x 8
Voltage - Supply (Vcc/Vdd)2.4V ~ 3.6V
Data ConvertersA/D 6x12b; D/A 1x10b
Oscillator TypeInternal
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case80-LQFP
Supplier Device Package80-LQFP (12x12)
