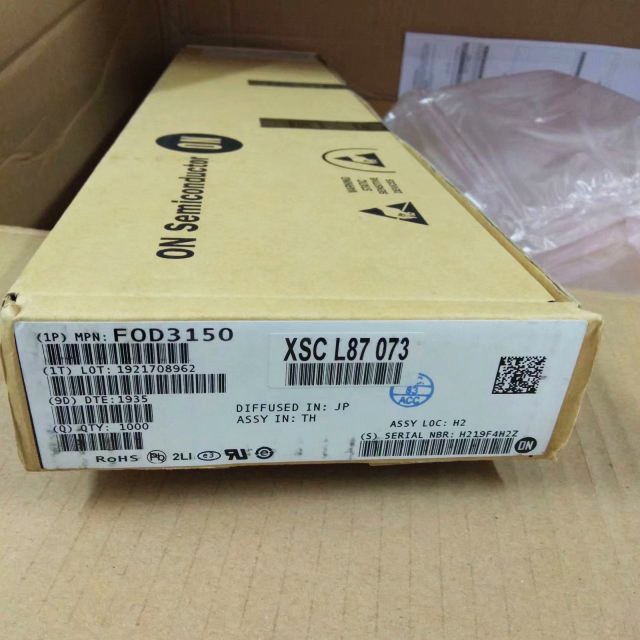

FOD3150

FOD3150 ON Semiconductor Optocoupler Drive Push-Pull 1-CH 30V 2000V 8-Pin PDIP Tube

ManufacturerON Semiconductor
Series-
PackagingTube
Part StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)300ns
Rise / Fall Time (Typ)60ns, 60ns
Current - Output High, Low1A, 1A
Current - Peak Output1.5A
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
ApprovalsUL
