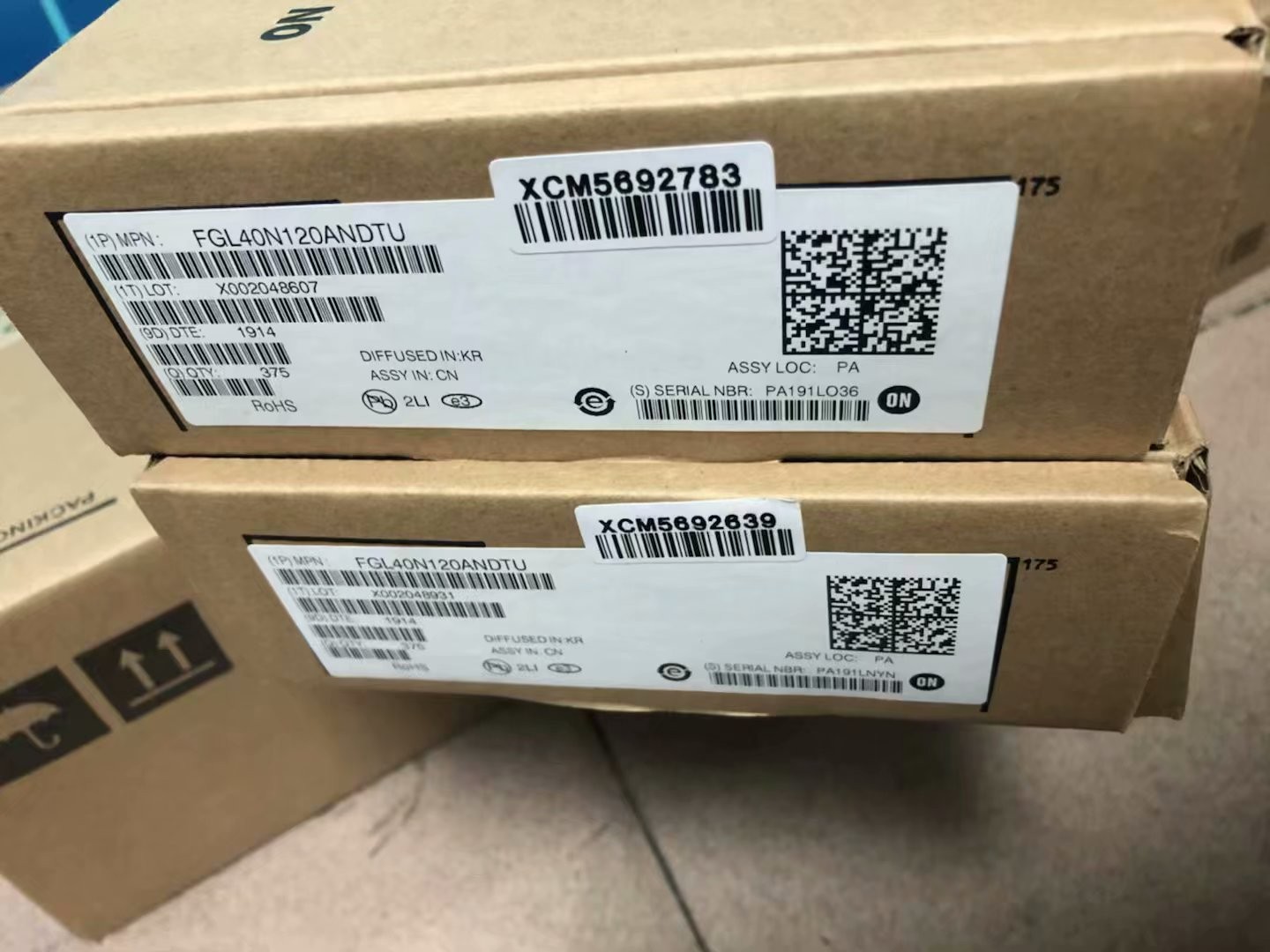

FGL40N120ANDTU

FGL40N120ANDTU ON Semiconductor Trans IGBT Chip N-CH 1200V 64A 500000mW 3-Pin(3+Tab) TO-264

ManufacturerON Semiconductor
Series-
PackagingTube
Part StatusNot For New Designs
IGBT TypeNPT
Voltage - Collector Emitter Breakdown (Max)1200V
Current - Collector (Ic) (Max)64A
Current - Collector Pulsed (Icm)160A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 40A
Power - Max500W
Switching Energy2.3mJ (on), 1.1mJ (off)
Input TypeStandard
Gate Charge220nC
Td (on/off) @ 25°C15ns/110ns
Test Condition600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)112ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264-3
