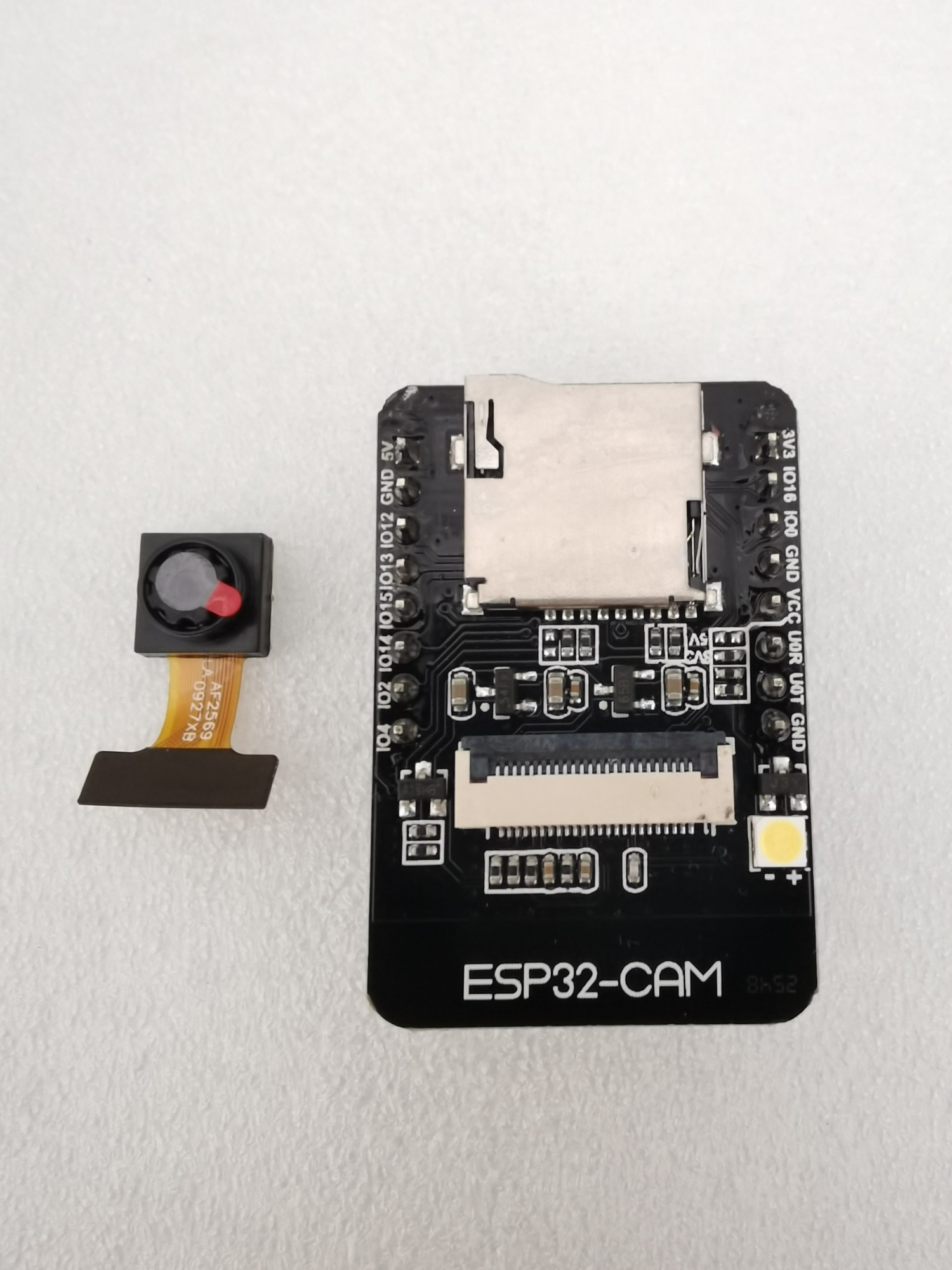

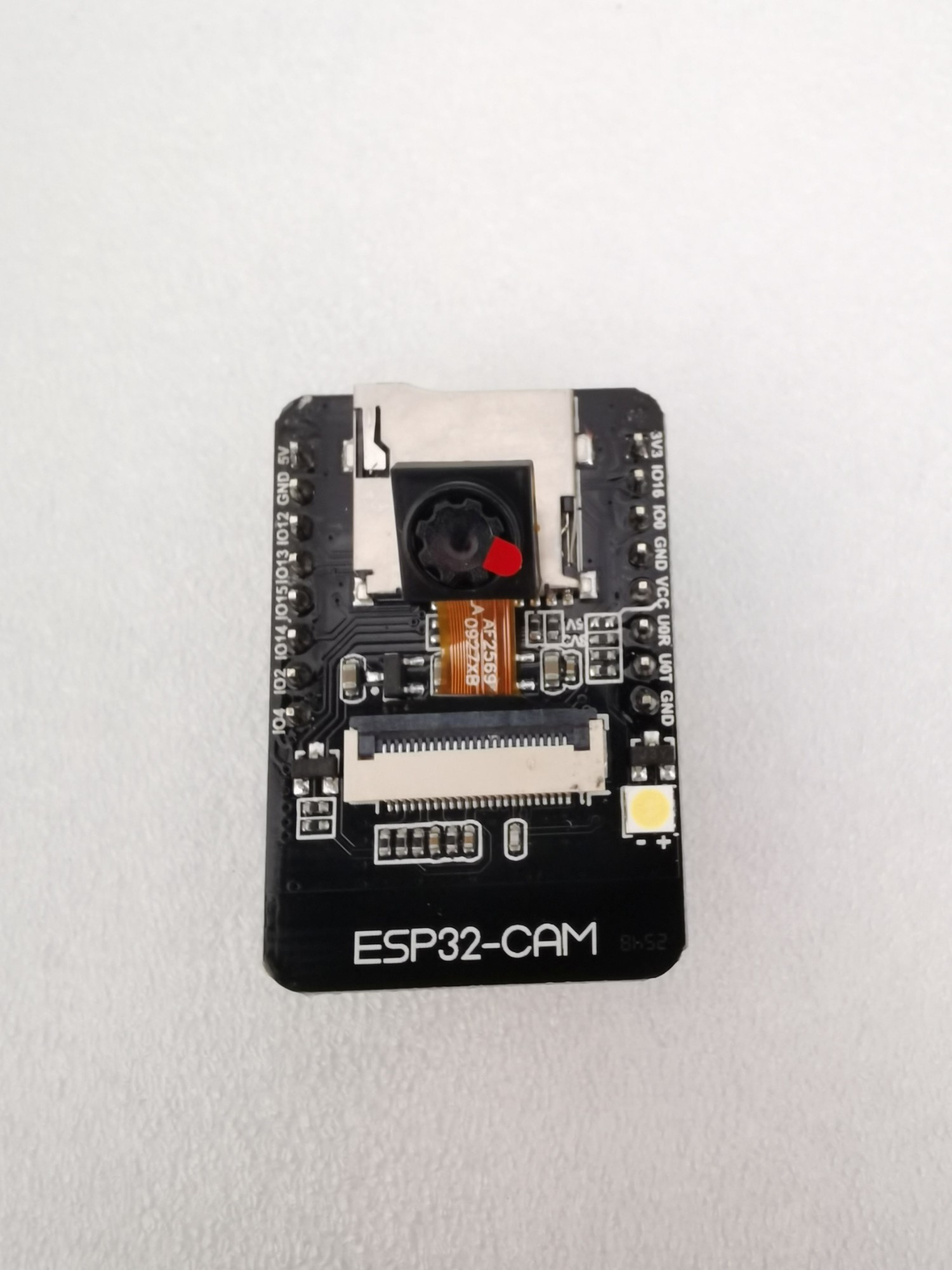

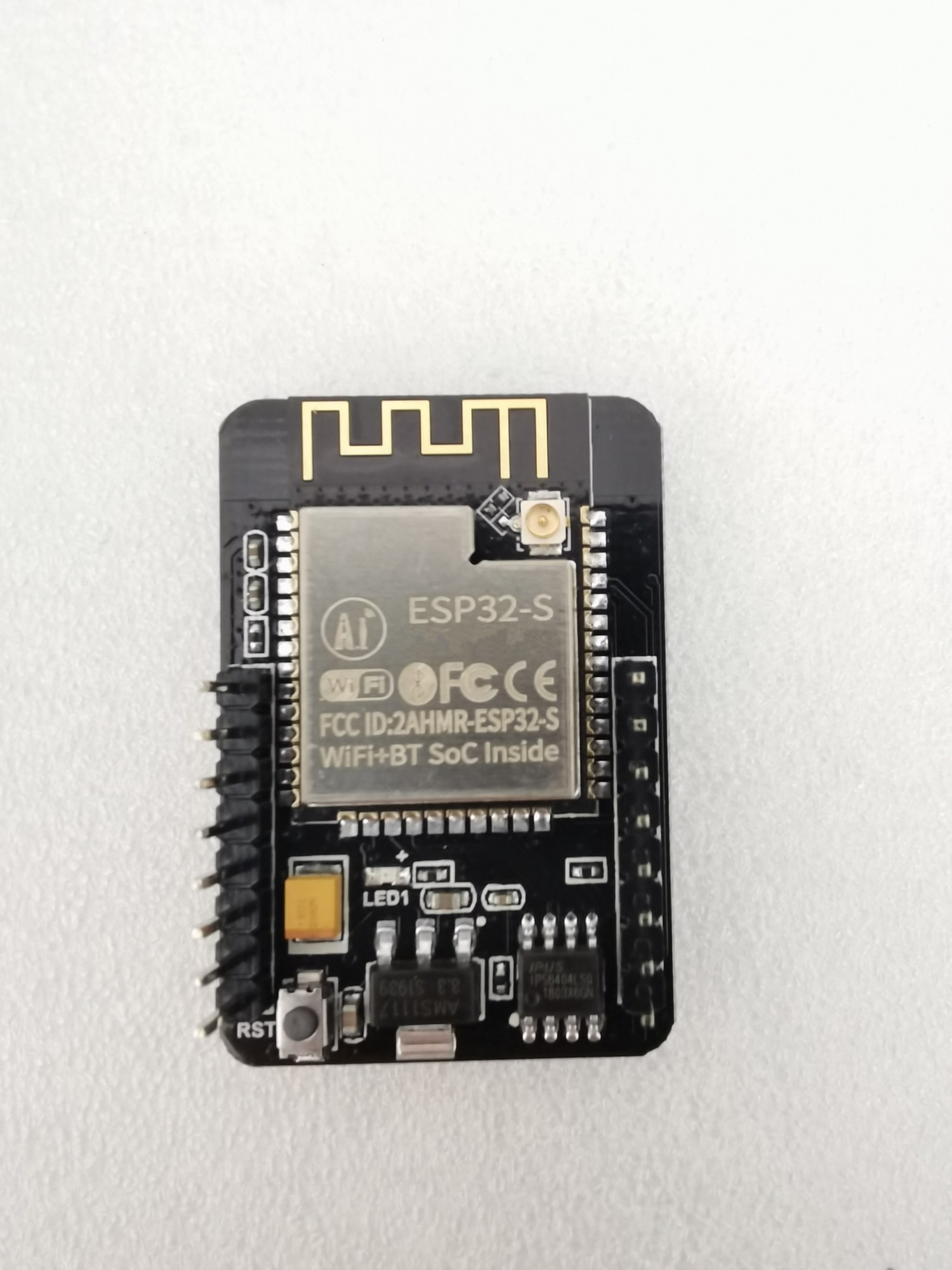

ESP32-CAM

ESP32-CAM BLE SoC WIFI Bluetooth Module ESP32 Development Board

Model

ESP32-CAM

Package

DIP-16

Size

27*40.5*4.5(±0.2)mm

SPI Flash

Default 32Mbit

RAM

Internal520KB+external 4M PSRAM

Bluetooth

Bluetooth4.2BR/EDR and BLE standards

Wi-Fi

802.11 b/g/n/e/i

Support Interface

UART, SPI, I2C, PWM

Support TF card

Maximum support 4G

GPRS

Class12

IO port

9

Serial Port Rate

Default 115200 bps

Image Output Format

JPEG (only supported by OV2640), BMP, GRAYSCALE

Spectrum Range

2412 ~ 2484MHz

Antenna Form

Onboard PCB antenna , gain 2dBi

Transmit power

802.11b: 17±2 dBm (@11Mbps)
802.11g: 14±2 dBm (@54Mbps)
802.11n: 13±2 dBm (@MCS7)

Receiving sensitivity

CCK, 1 Mbps : -90dBm
CCK, 11 Mbps: -85dBm
6 Mbps (1/2 BPSK): -88dBm
54 Mbps (3/4 64-QAM): -70dBm
MCS7 (65 Mbps, 72.2 Mbps): -67dBm

Power consumption

Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: up to 20mA@5V
Light-sleep: up to 6.7mA@5V

Security

WPA/WPA2/WPA2-Enterprise/WPS

Power supply range

5V

 Operating temperature -20 °C ~ 85 °C

Storage environment

-40 °C ~ 90 °C, < 90%RH



ESP32-CAM Picture Output Format Rate:


QQVGA

QVGA

VGA

SVGA

JPEG

6

7

7

8

BMP

9

9

-

-

GRAYSCALE

9

8

-

-
