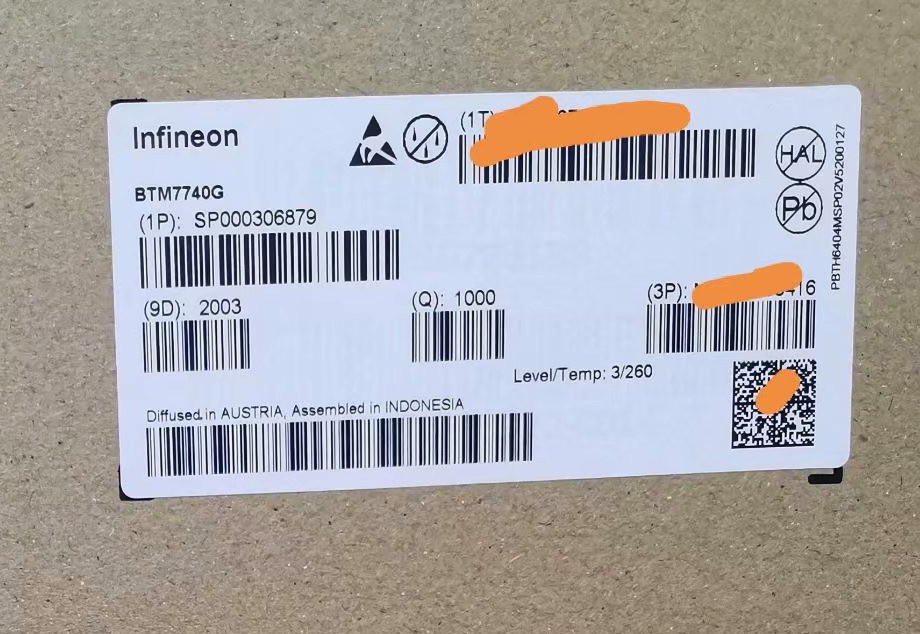

BTM7740G

BTM7740G Infineon Technologies AG Motor Driver Automotive 28-Pin DSO T/R

ManufacturerInfineon Technologies
SeriesTrilithIC™
PackagingTape & Reel (TR)
Part StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyDMOS
Rds On (Typ)100mOhm LS, 110mOhm HS
Current - Output / Channel-
Current - Peak Output8A
Voltage - Supply1.8V ~ 42V
Voltage - Load1.8V ~ 42V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesStatus Flag
Fault ProtectionOver Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device PackagePG-DSO-28
