ADG659YRUZ

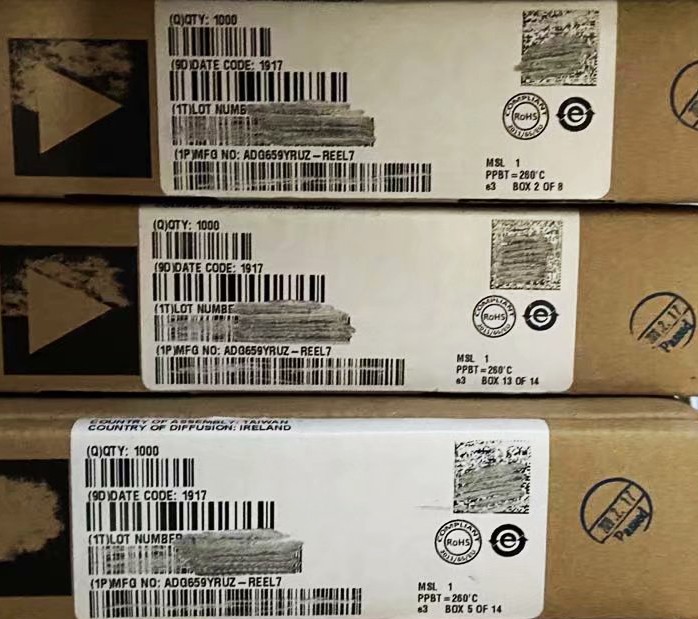

ADG659YRUZ-REEL7 Analog Devices Inc Analog Multiplexer Dual 4:1 Automotive 16-Pin TSSOP T/R

ManufacturerAnalog Devices Inc.
Series-
PackagingTape & Reel (TR)
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)75Ohm
Channel-to-Channel Matching (ΔRon)1.3Ohm
Voltage - Supply, Single (V+)2V ~ 12V
Voltage - Supply, Dual (V±)±2V ~ 6V
Switch Time (Ton, Toff) (Max)115ns, 45ns
-3db Bandwidth400MHz
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))4pF, 12pF
Current - Leakage (IS(off)) (Max)200pA
Crosstalk-90dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
