64MP Image Sensor Sampling

OmniVision is sampling its first 64MP image sensor featuring a 0.8 micron pixel size to enable high resolution smartphone cameras in a 1/1.7″ optical format.

Built on OmniVision’s PureCel Plus stacked die technology, this sensor provides leading edge still image capture and exceptional 4K video performance with electronic image stabilization (EIS) for high end smartphones.

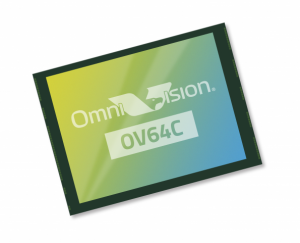

The OV64C also offers a wide range of features, such as 4-cell remosaic for full resolution Bayer output as well as digital crop zoom, and a CPHY interface for greater throughput using fewer pins, making it ideal for the main rear-facing camera in multi camera configurations.

The chip integrates an on-chip 4-cell color filter array and hardware re-mosaic, which provides high quality, 64 MP Bayer output in real time.

In low light conditions, this sensor can use near-pixel binning to output a 16 MP image with 4X the sensitivity, offering 1.6 micron equivalent performance for previews and still captures. In either case, the OV64C can consistently capture the best quality images, as well as enabling 2X digital crop zoom with 16 MP resolution and fast mode switch.

The sensor features type-2, 2×2 microlens phase detection autofocus (ML-PDAF) to boost autofocus accuracy, especially in low light. Output formats include 64 MP at 15 frames per second (fps), 8K video at 30 fps, 16 MP captures with 4-cell binning at 30 fps, 4K video at 60 fps and 4K video with EIS at 30 fps.

Additionally, the OV64C supports 3-exposure, staggered HDR timing for up to 16 MP video modes.
